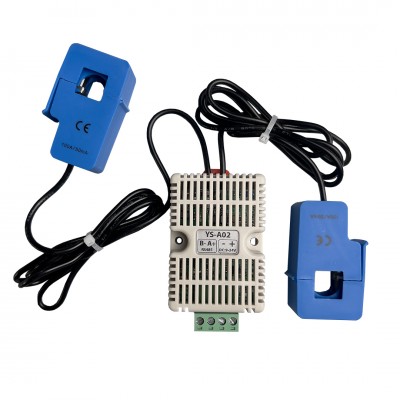

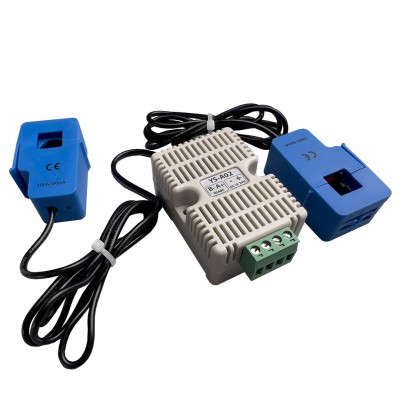

ترنسدیوسر سنسور جریان CT دو کانال

( DS-A02TR )

ترنسدیوسر سنسور جریان CT دو کانال با ارتباط سریال RS485 و پروتکل Mod Bus و امکان افزایش طول کابل تا 300 متر

تنظیم شده و مناسب برای  کنترلر های G820، GW820، G920, GW920

تومان 500,000 با ماليات

10 قلم

Description:


    Product adopts industrial-grade chip, high-precision analog CT current sensor inputs, ensure the products with good reliability, high precision and interchangeability.
    Adopt RS485 hardware interface (with the lightning protection design), the protocol layer compatible with standard industrial Modbus RTU protocol.
    This product integrating MODBUS protocol and ordinary UART communication protocol, users can choose communication protocols, UART communication support automatic report function (Connect the RS485 serial interface mode tool by automatically output temperature and humidity).

Features:


    1>.Support MODBUS RTU protocol
    2>.RS485 supports 1000 meters communication
    3>.Standard DIN35 mounting rails
    4>.High precision
    5>.Industrial products, high progress CT current sensing sensor, the RS485 communication
    6>.Standard MODBUS protocol and ordinary protocol, the user can choose communication protocol
    7>.Baud rate can decide for themselves
    8>.General agreement with automatic upload function, upload speed can decide for themselves

Parameters:


    1>.Product Name:Modbus RTU RS485 CT sensor Transmitter
    2>.Product Number:YS-A02TR
    3>.Working Voltage:DC 5V~30V
    4>.Output signal:RS485 signal
    5>.Communication protocol:Modbus RTU and ordinary protocol
    6>.Communication address:1~247(default 1)
